aluminum white beam

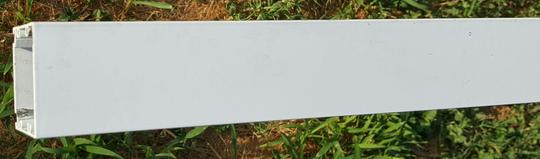

​White Aluminum Industrial Grade Beam

FDR Custom Enclosures, LLC Service Areas for Screen Pool Enclosures (Pool Cages), Screen Rooms, Patio Enclosures, Greenhouses, Aviaries, Spa Enclosures, Detached Enclosures, Pergolas, Security Screen Doors and Entryways

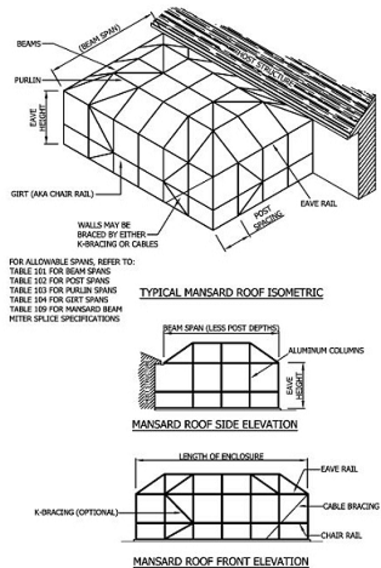

​Mansard

​​Visit Our Informative Blog to learn more

hip roof style
Tech Person's Paradise Photo

 Add Retail Value To Your Home

Our enclosures are custom designed to fit any space and shape. They can be designed to extend from a roof line, a patio cover, or designed as a free standing pool enclosure. Pool enclosures are beautifully aesthetic, and add value to your home.

• Custom Enclosures

The owner of FDR Custom Enclosures, LLC has over 30 years experience building every roof type. Usually the roof style of the house determines the enclosure roof type, with Mansard being the most common. Designs by Frank can create a Mansard roof that transitions into an A-Frame roof type.

We have 5 beam colors to choose from. For beams over 7 feet,
sandstone, adobe, and ivory will have to be SPECIAL ORDERED. Bronze and white come in all sizes, because they are the most used in the aluminum industry.

​Flat

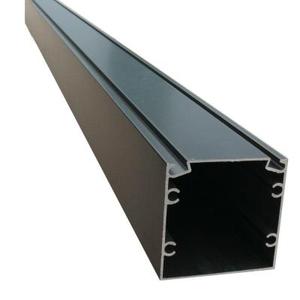

Bronze Aluminum Industrial Grade Beam

screen room roof styles
FDR Custom Enclosures Information

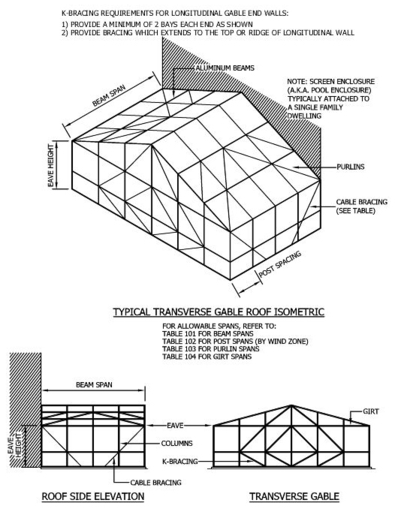

​Transverse Gable or A-Frame

transverse gable roof style
  • ​High Quality


Thick vinyl-coated fiberglass screen is of a higher quality than most other screen materials. The heavy duty screen will stand up to high winds and blistering summer heat, all without sacrificing too much outward visibility. The extruded aluminum frame has a baked enamel that provides resistance against weathering, scratches, and deterioration caused by some chemicals.

dome roof style photo
enclosure roof styles

​• Freedom From Insects And Debris

Swimming Pool Enclosures are a great way to decrease the amount of maintenance that is required to keep your pool clean of debris. Pool Cages keep lawn maintenance debris and vegetation debris from getting into your pool area.  Screened in Pool Enclosures also keep insects like flies, bees, (snakes?) and wasps from ruining your outdoor enjoyment. An enclosure will protect you from the mosquitoes too! You may even barbecue inside of your enclosure, as long as you keep sufficient space (approx. 2-3 feet) between the heat of the grill and the enclosure.

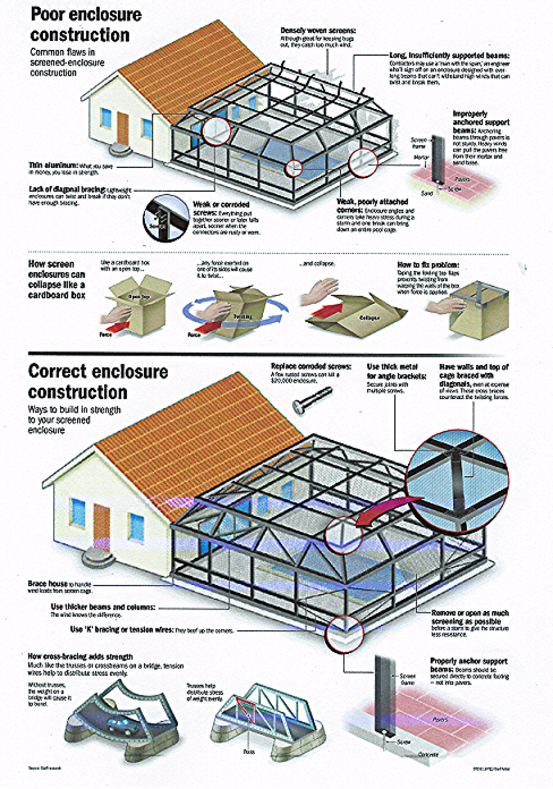

Illustration of Pool Enclosure Construction versus Correct Enclosure Construction

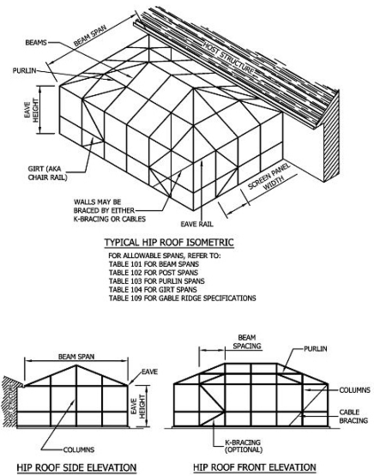

​Hip

FDR The Fair Deal Company TM Logo Photo
aluminum bronze beam
mansard roof style photo

Correct Enclosure Construction:

  • Brace House to handle wind loads from screen cage.
  • Use thicker beams and columns: The wind knows the difference.
  • Use "K" bracing or tension wires: They beef up the corners.
  • Properly anchor support beams: Beams should be secured directly to concrete footing - not pavers.
  • Have walls and top of cage braced with diagonals, even at expense of views. These cross braces counteract the twisting forces.
  • Use thick metal for angle brackets: Secure joints with multiples screws.

The owner of FDR Custom Enclosures has a 0% Enclosure Failure Rate. Correct enclosure construction is a 100% guarantee with our company.

gable roof style

Crucial elements to watch for regarding poor enclosure construction:

  • Thin Aluminum: What you save in money you lose in strength.
  • Lack of diagonal bracing: Lightweight enclosures can twist and break if they don't have enough bracing.
  • Weak or corroded screws: Watch for the use of rusty or corroded screws.
  • Improperly anchored support beams: Anchoring beams through pavers is not sturdy. Heavy winds can pull pavers free from their mount and sand base.
  • Long, insufficient supported beams: Contractors may use a "man with the span," an engineer who'll sign off on an enclosure designed with over-long beams that can't withstand high winds that can twist and break them.
  • Densely woven screens: Although great for keeping bugs out, they can catch too much wind.

Pool Screen enclosures - cages - lanai          patio enclosures - screen porch

flat roof style

​​​​Screen rooms provide a pleasant and comfortable outdoor environment where one may feel relaxed without being annoyed by insects. They expand the exterior patio area that is adjacent to the existing house, which provides a larger cover space. They provide year-around enjoyment, regardless of our Texas climate conditions. We engineer our screen rooms to withstand hurricane weather conditions while maximizing visibility. Our product is built by using panels that have a Texas & Florida product approval.

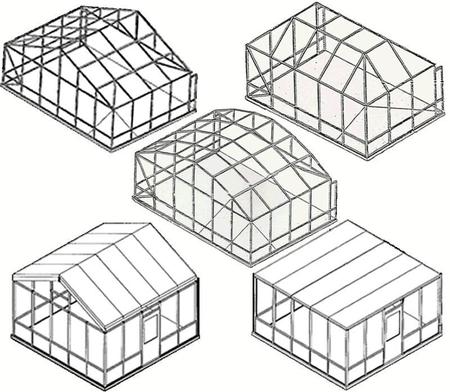

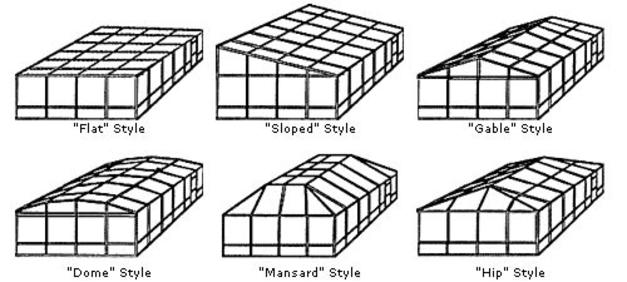

                                                                                                    Screen Room/Enclosure Roof Types


















Screen pool enclosures are trending in Texas. Some people refer to them as pool cages. They are one in the same. When facing heavy winds, they need to be designed to stand firm. Strong aluminum beams and engineering are used to tighten the roof bracing and special hardware is used to attach the enclosure to the concrete deck. We meet or exceed county codes in all our screen patio and pool enclosure projects and we are recognized for being very detail-oriented. Our philosophy is to build a strong, lasting product while keeping the engineering and design in balance with the landscape.

Aluminum pergolas are growing in popularity because they last a long time and need almost no maintenance to continue looking good. Whether you are improving the appeal of an existing patio or converting a corner of your property into a cozy backyard retreat, our Aluminum Pergolas help to protect and enhance your home’s value by making your outdoor space more beautiful, comfortable, and inviting. You may also want to see our new Louvered Roof system that combines both options of a cover patio and an aluminum pergola.

Insulated roofs
The Elite insulated roofs are one of most the popular products we install.  They are typically used to provide cover to an exterior area or to create an insulated terrace.  The
3” insulated panels reduce the heat by up to 15% and are strong enough to walk on top, which is a big plus for home maintenance. The insulated roofs can be combined with superior design columns and skylights to provide an amazing outdoor space. Electric conduits can also be included inside of the roofs for placement of fans or lighting. You, your family, and your friends will be delighted to enjoy more time outdoors.

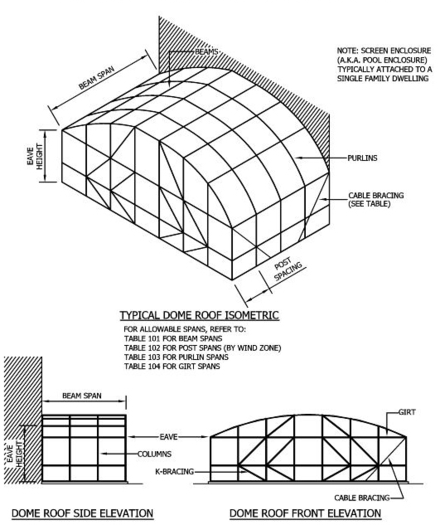

​Dome

aluminum beam color choice photo

Enclosure Roof Types

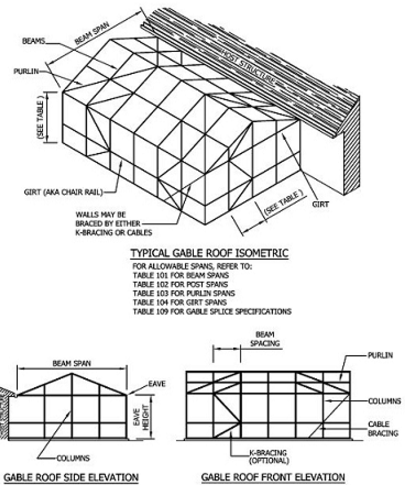

​Gable
